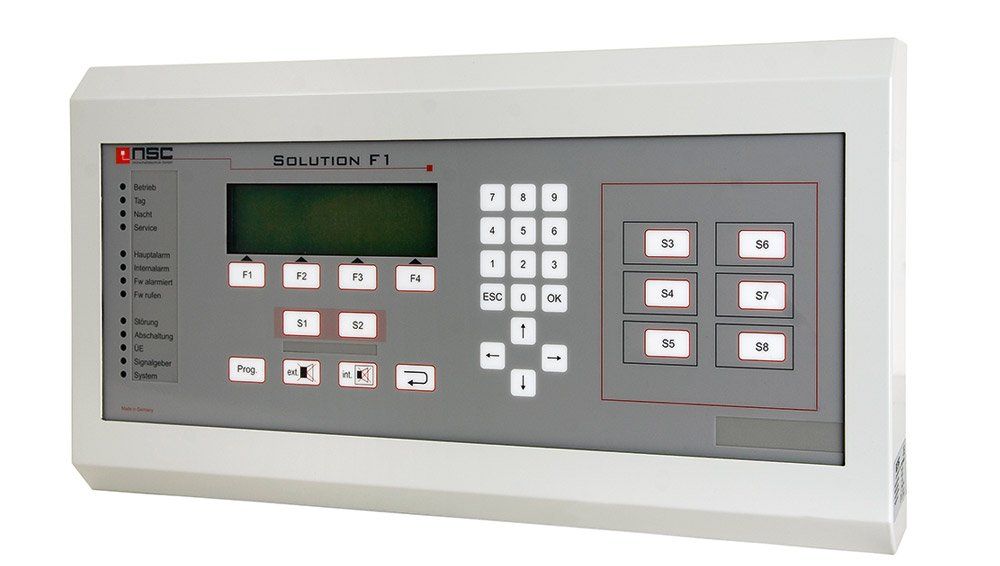

Fire alarm control panel Solution F1

The concept

The "Solution F1" fire alarm control panels are modular, highly modern fire alarm control panels of the latest generation. They were developed to meet national and international standards as well as international specifics. And that at the highest level..

Remote control panel

The control panels impress with their many innovations - some of which are unique in security technology - and they also impress with their complete equipment. Many options, which are often additionally calculated, are already included in the basic configuration. Thanks to the different expansion stages as well as the front panel design, the "Solution F1" fire alarm control panels are a flexible and universal product that can be used for all applications. Thanks to the modularity, it can be perfectly adapted to the needs of the user.

Flexibility - also with the connectable detectors - was one of the top priorities during the development. Of course, almost all limit value detectors commonly available on the market can be connected. Particularly noteworthy: The "Solution F1" control panels are compatible with the latest, addressable detectors, both from Hochiki and Apollo - two of the largest and best-known detector manufacturers in the world.

• Modular, intelligent hybrid fire alarm control panel series
• For Hochiki ESP detectors and Apollo XP95 / Discovery detectors
• 2 to 18 ring lines in a standard housing
• New touch control panel
• Basic configuration already with graphic LC display 240 x 64 dots
• Integrated power pack 24 V DC with max. 6.7 A or 4.2 A.
• 32-bit high-performance CPU
• Up to 8 MB flash and 8 MB main memory
• Many useful features are already included in the basic configuration
• PC programming (configuration / diagnosis) via modem or USB interface
• Fully redundant central computer and fully redundant ring bus cards as options

The models

The "Solution F1-6" has an integrated power supply unit with a nominal output voltage of 24 V DC and a maximum current of 4.2 A. A maximum of 6 ring lines per 254 ring bus users (127 detectors plus 127 loop signaling devices ) and 512 zones can be managed. There are three different standard housings available, which should be selected according to the required battery space.

The larger "Solution F1-18" has a 24V DC power supply unit with 6.7 A rated current and can manage a maximum of 18 ring lines. Here, too, you can choose from the three standard housings. Compared to the "Solution F1-6", this control panel has additional equipment features such as 1024 freely programmable detector groups, USB host interface, metal rack for a second installation level for system boards, connection option for TFT display, SD card slot and interface to audio Codec module.

Alternatively, both models can also be installed in a 19 “housing. There is no need for conversion kits, installation frames or the like. Basically, the central units can be installed in 19 “. The plug-in, clear connection terminals are ideal for the technician, so that installation and assembly can be carried out very easily and very quickly.

Expansion options and compatible detectors

The Solution F1 offers a wide range of equipment options and expansion options. You can find detailed information on this and on compatible ring bus detectors in the 12-page brochure:

PDF download brochure Fire Alarm Control Panel Solution F1>
