Gas Detectors

A completely unique selection of gas detectors that sets new benchmarks for safety around the world by combining cutting-edge technology with first-rate customer service. customised detection, taking into account both the gas type and container parameters. The most rigorous Atex and performance certifications govern the whole Premium line. SMART S detectors are made to meet the highest standards for system personalization. Customers have a variety of system performance options (with LCD or LED display, without display, number of cable sockets, number of relays, Hart modem, copper-free aluminium or stainless steel enclosures). By selecting the suitable sensor head, it is also possible to choose the kind of gas that will be detected.

Smart
S Detectors

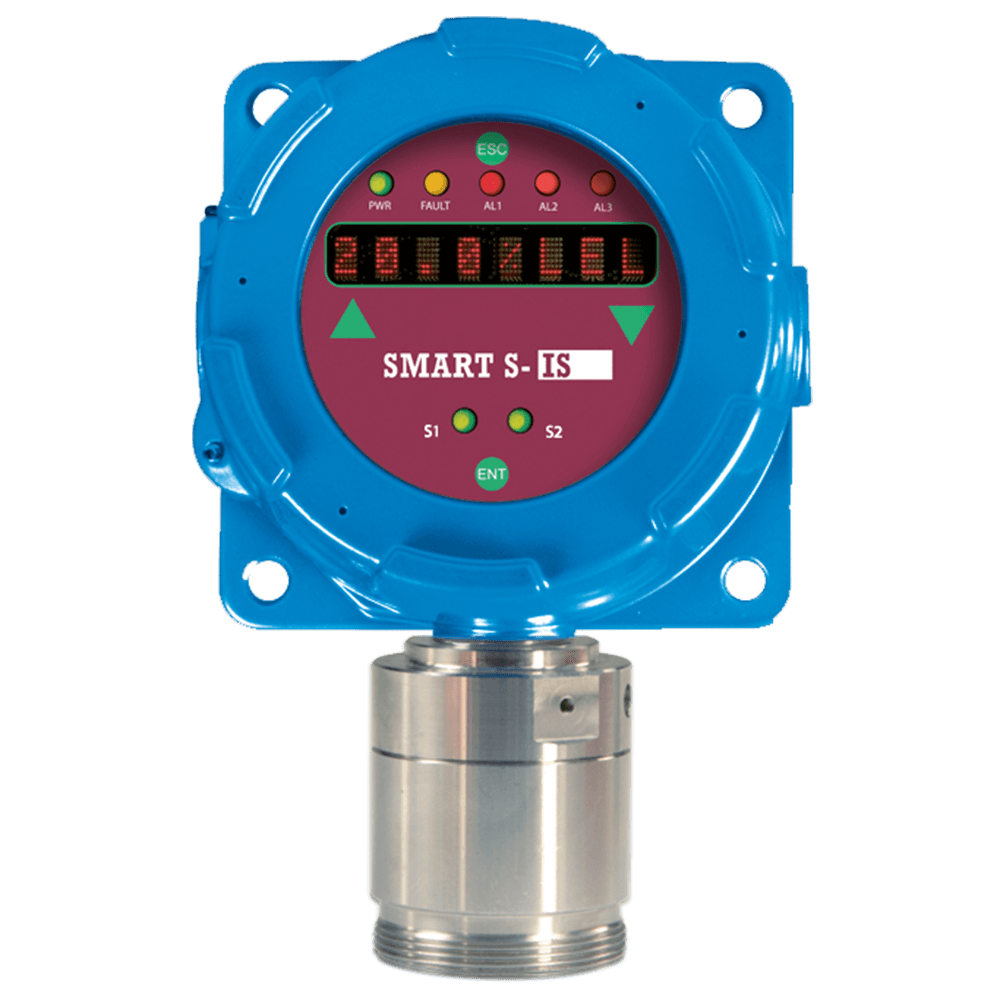

The SMART S gas detectors have SIL2 (SIL3) and ATEX certification and comply with the stringent application requirements of the oil and gas, chemical, and petrochemical industries as well as anywhere the idea of Safety Integrity Level is a fundamental necessity. They are designed to guarantee safe gas detection in the harshest environments. Licensed to operate in accordance with EN 50402 and IEC 61508 (Parts 1–7) standards.

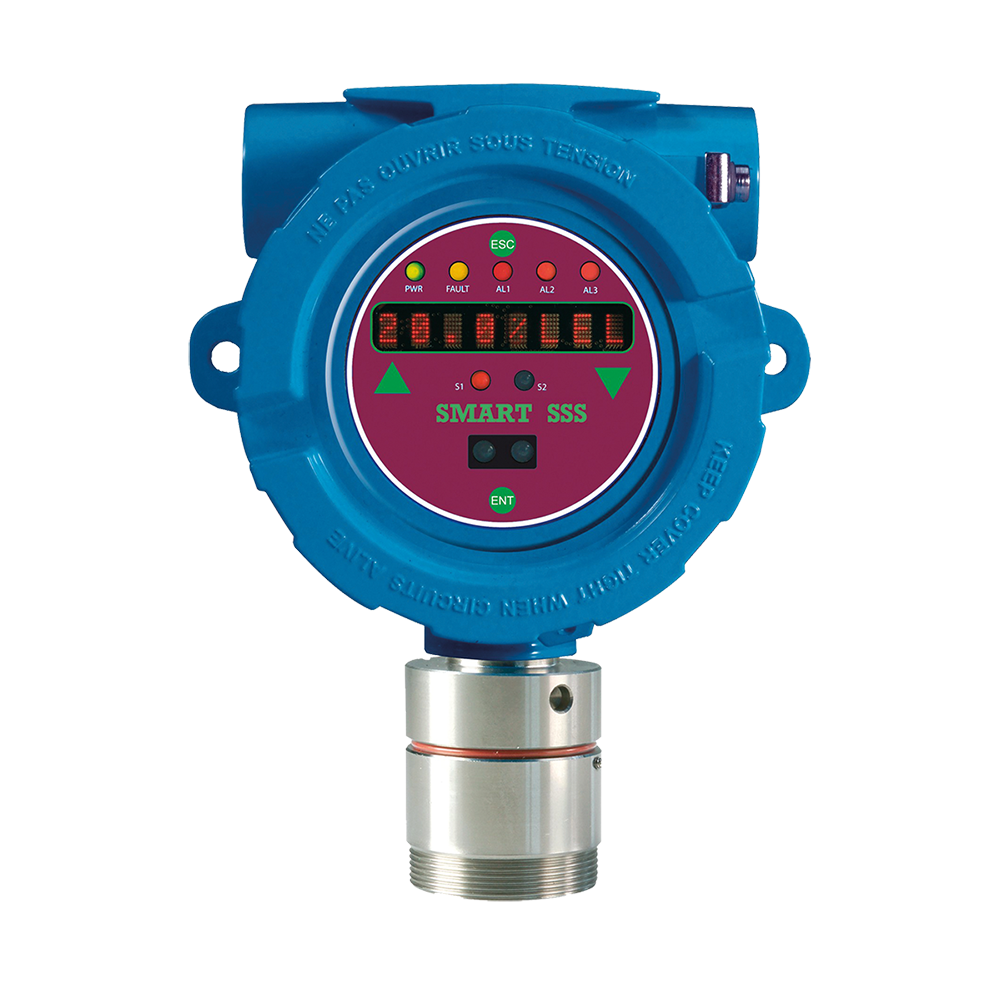

SMART S-SS

Features:

• Electronic with1 output RS+4-20 mA,
• LCD display or LED
• Optional 3-relay card
• Optional Modem Hart
• Aluminum enclosure or stainless steel
• SIL2 Hardware & SIL3 Software Certified
• ATEX certified for zone 1 as II2G Ex db IIC T5 Gb

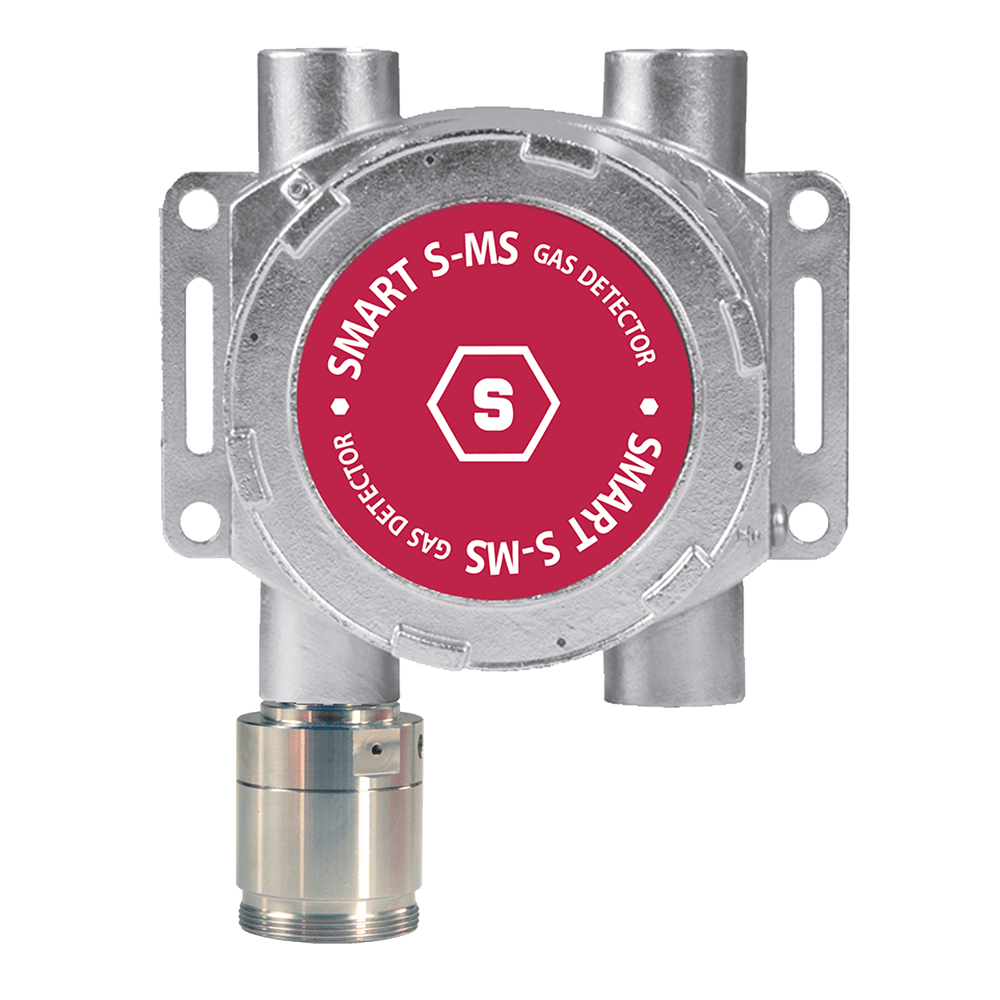

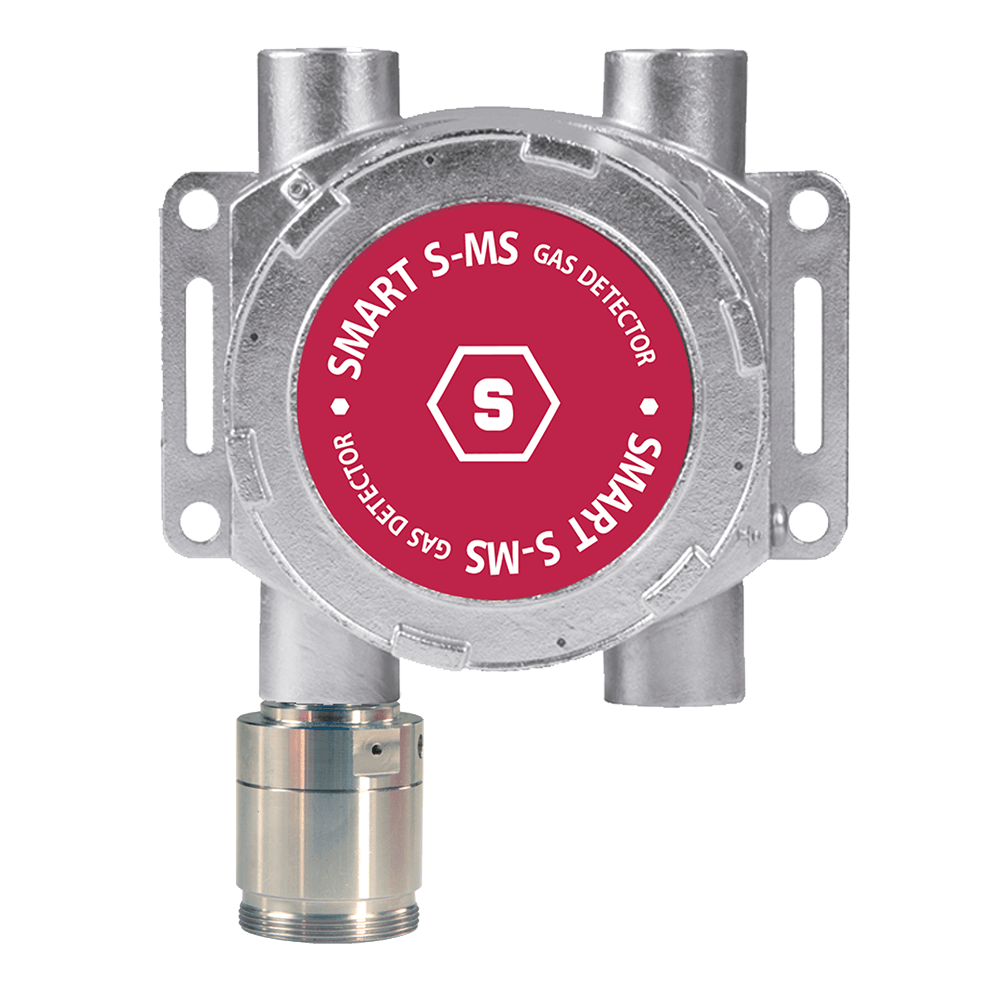

SMART S-MS

Features

• Electronic with1 output RS+4-20 mA,
• Blind enclosure
• Optional 3-relay card
• Optional Modem Hart
• Aluminum enclosure or stainless steel
• SIL2 Hardware & SIL3 Software Certified
• ATEX certified for zone 1 as II2G Ex db IIC T5 Gb

PREMIUM SAFETY
LINE CONTROL PANELS

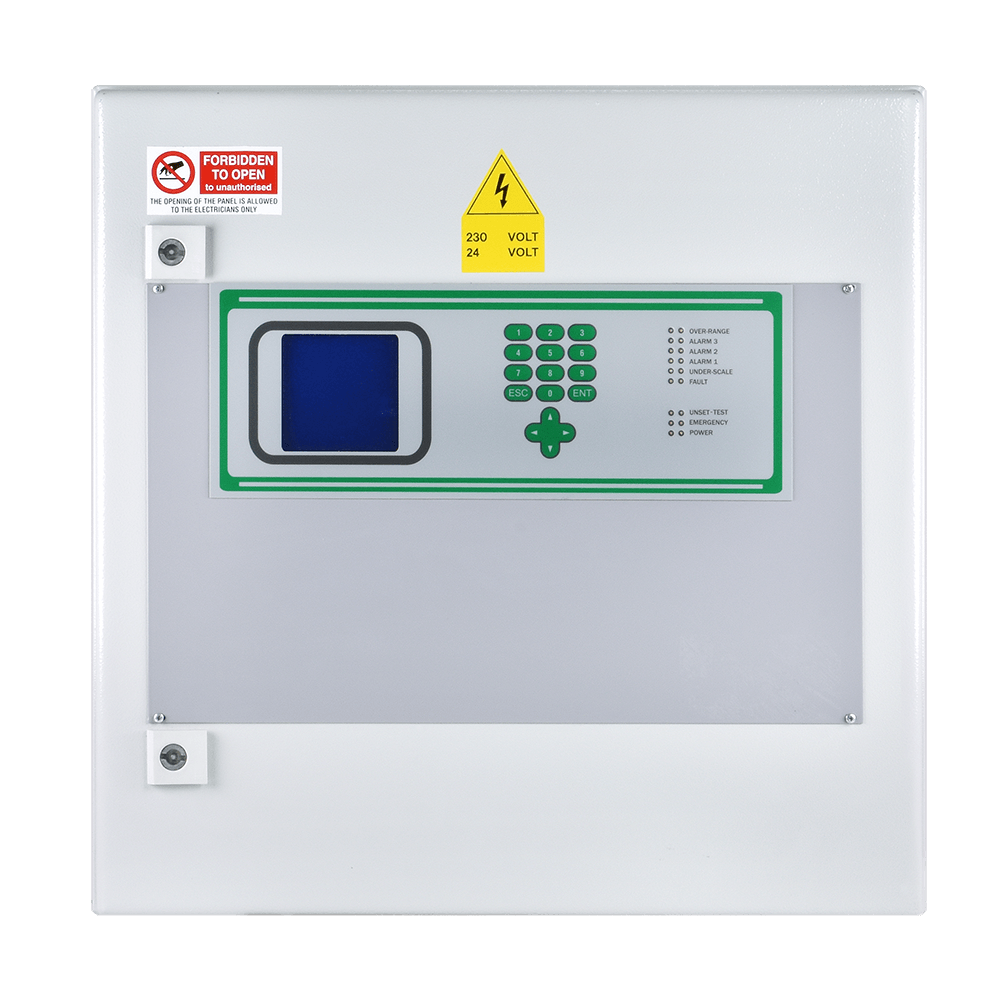

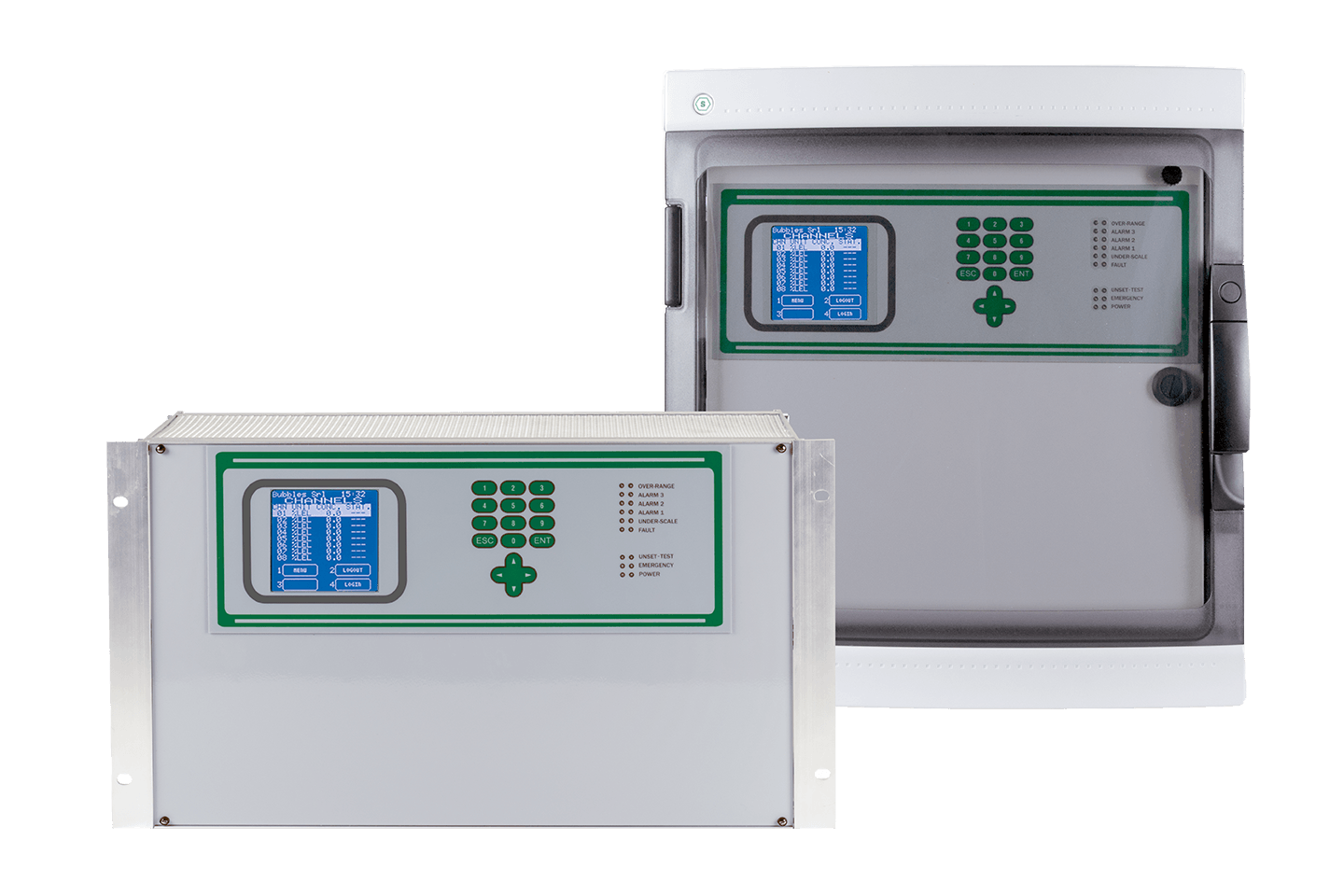

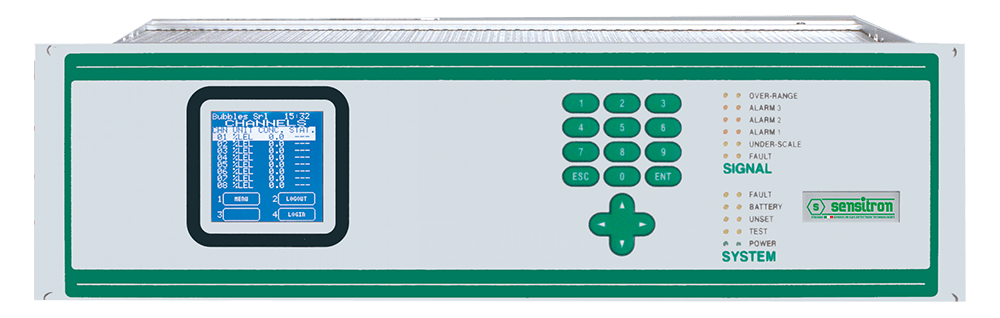

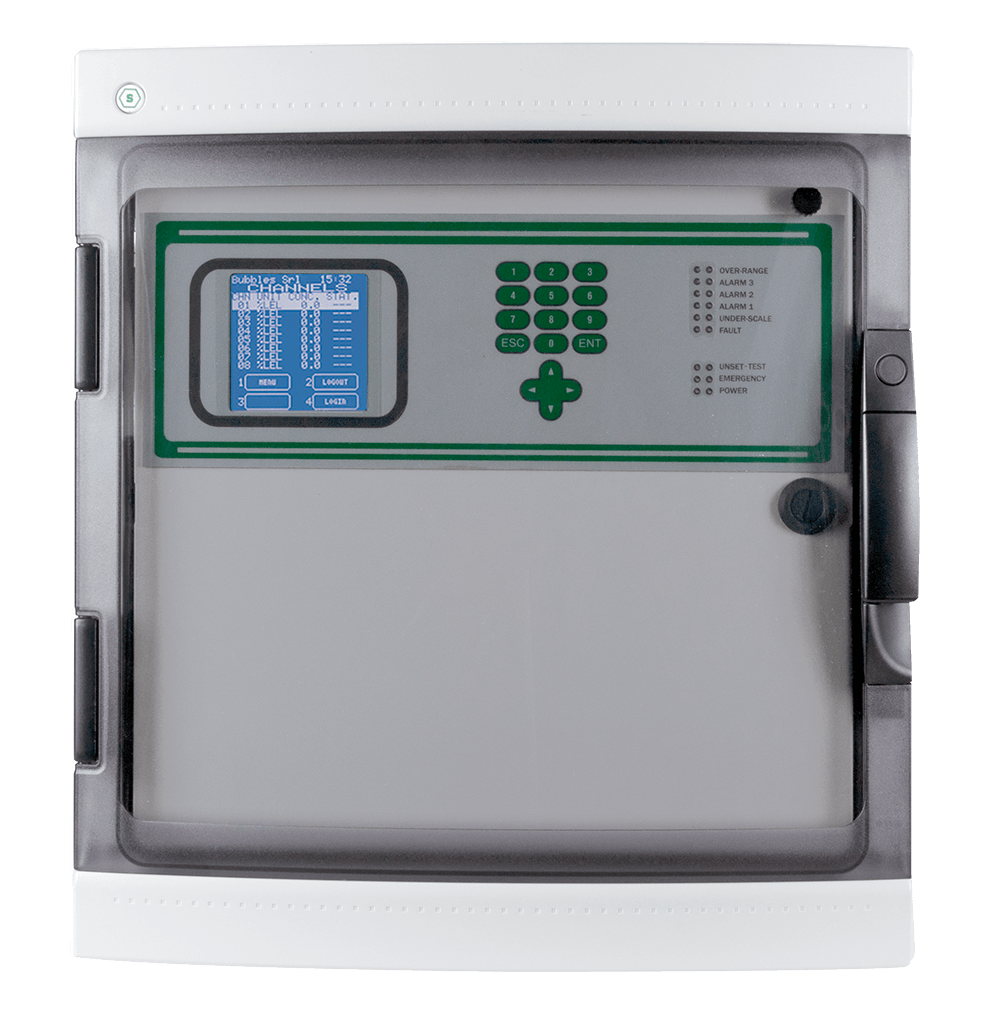

Sensitron offers the Premium line range, which consists of SMART S detectors and GALILEO & Multiscan++ control panels, to provide a comprehensive gas detection system that is completely compatible to SIL2 and SIL3 criteria. Galileo panels are SIL 3 certified in accordance with EN 50402 and IEC 61508 parts 1 to 7, and this is possible because of the hardware's complete redundancy and the wide range of self-testing capabilities. These panels, which come in a variety of models, can monitor anywhere from 8 to 256 detectors. Sensitron suggests the MULTISCAN++S2 control panel, which is certified SIL2, for applications where a less constrained SIL capability is required. All control panels have EN 60079-29-1 ATEX certification.
